FOTRIC / Imagen acústica
See where sound is coming from, so you can narrow down leak and noise problems in vehicles, workshops and equipment.
Leaks and unusual sounds can be hard to trace among crowded connections, running equipment and background noise.
FOTRIC muestra las fuentes sonoras sobre la imagen visible para centrar las inspecciones y reducir el tiempo de búsqueda.
FOTRIC / APLICACIONES
Elige una tarea para saber qué inspeccionar y cómo interpretar el mapa acústico.
Con la línea de aire comprimido presurizada, inspecciona las conexiones accesibles por tramos. Ajusta el rango de frecuencias para aislar el sonido de la fuga.
Identifica la conexión que señala el marcador acústico. Revísala y repite la inspección después de repararla, en condiciones comparables.
Reproduce el silbido en condiciones controladas en el taller. Inspecciona las conexiones accesibles de admisión y vacío, manteniendo la distancia respecto a piezas calientes y móviles.
Sigue el marcador acústico hasta la manguera o unión visible. Examina la junta y la conexión, y repite la revisión después de repararla.
Scan accessible pressurised joints for leak-related sound. For an unusual fan noise, inspect the running unit from a safe position and adjust the frequency range.
A marker near a joint identifies a place for a targeted leak test. Around a fan, it indicates the area to examine during servicing.
Observa el equipo mientras se produce el sonido. Inspecciona cada conjunto desde una posición segura y mantén constantes las condiciones de funcionamiento.
Compare where sound concentrates across the assemblies. Record the highlighted area so the technician can examine the relevant parts during maintenance.
FOTRIC / CÁMARAS ACÚSTICAS

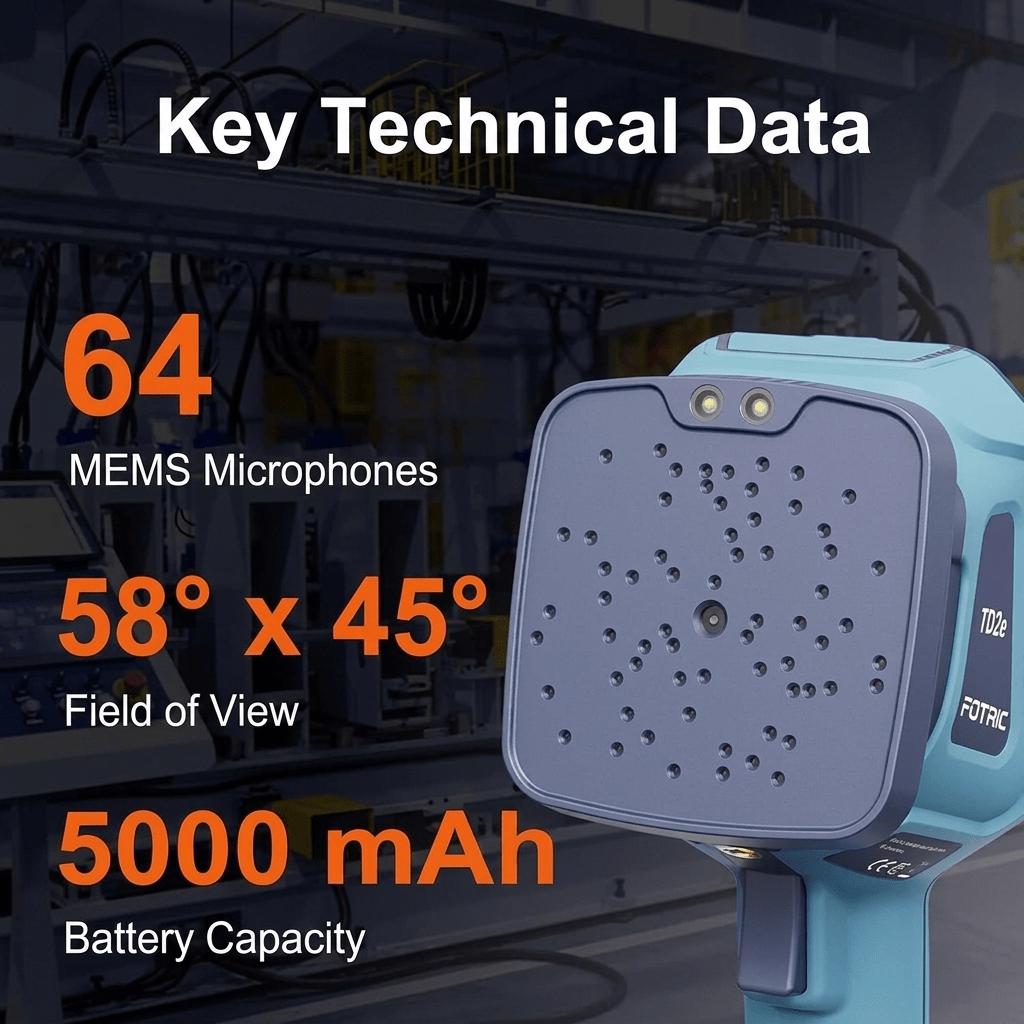

A standalone handheld camera with adjustable frequency selection and noise suppression.
FOTRIC / EN ACCIÓN
Explore the kit, see where it’s used, and watch practical tests.
Identifica la conexión o el componente que se está revisando.
Observa cómo se desplaza el marcador acústico al mover la cámara.
Observa dónde centra la inspección el operario.
FOTRIC / ANTES DE COMPRAR
Answers for real inspections, choosing your kit and getting support.
Cuéntanos qué quieres inspeccionar y dónde utilizarás el equipo. Nuestro equipo te ayudará a elegir la configuración adecuada.
cs.eu@fotric.comYes. With the line pressurised, scan the accessible hose joints, quick couplings and pneumatic valves. The TD2e overlays leak-related sound on the camera image, helping you distinguish one connection from the next in a crowded area.
This gives you a specific place to inspect and repair. Finding and fixing those leaks helps reduce wasted compressed air and the extra work needed to replace it.
Yes. Noise Suppression mode reduces background interference, while manual frequency selection lets you focus on the leak signal. For compressed-air checks, 20–40 kHz is a useful starting band; adjust it as you scan.
This helps you inspect accessible connections during operation and identify where to check more closely. Keep a safe distance from moving parts and follow the equipment’s operating procedures.
Yes. Air entering a vacuum leak can produce high-frequency sound that the TD2e maps onto the visible image. When the hiss is present, scan accessible intake hose joints and vacuum connections under controlled workshop conditions.
The sound marker helps you focus on a particular hose or connection instead of checking the whole engine bay at random. Keep clear of hot and moving parts, then examine the highlighted connection before deciding on a repair.
Yes. Escaping pressurised gas can produce sound that the TD2e locates, helping you narrow the search around accessible joints and valves. It responds to the leak sound rather than identifying the gas chemically, so the useful signal depends on the leak and pressure conditions.
For trained HVAC technicians, this provides a location for a targeted leak check before repair. Use it in non-hazardous areas; the TD2e is not rated for explosive atmospheres.
Yes, for sounds within its 2–100 kHz range. Scan the assemblies while the sound is present and compare where the acoustic image concentrates. Single-source mode highlights the strongest region; Multi-source mode helps you view several stronger sources together.
This helps you choose which assembly to inspect first. Use the highlighted area to focus the mechanical check, rather than replacing components based on the sound map alone.
Yes, where the leak sound has a clear path to the camera. The specified working range is 0.3–60 metres, so you can begin with an overview from an accessible position.
Useful distance depends on sound strength and site conditions. Once you identify a candidate area, move closer where safe to separate nearby fittings and weaker signals. This helps you decide where a closer inspection is worth arranging.
Yes. The TD2e saves JPG images containing the acoustic overlay. Transfer them to a computer through USB Type-C or the memory card, then add them to your own inspection report with the location and repair notes.
This helps customers and colleagues see which connection you checked. The files are finished images for viewing and sharing, rather than raw acoustic data for PC re-analysis.
For compressed-air leaks, start around 20–40 kHz. For vacuum leaks, try 30–60 kHz. If the source is unknown, begin with the full 2–100 kHz range, then narrow the band around the signal you want to investigate.
Treat these as starting points. Adjusting the band while watching the image helps you separate the relevant sound from other equipment nearby.
The TD2e is specified for at least three hours of continuous use per battery, depending on conditions. The Professional Kit includes two batteries, so you can take a charged spare for a longer visit or another job.
Switch the camera off before changing the battery. Recharge through the dock or the camera’s USB Type-C connection using the supplied power adapter. This gives you a practical way to plan charging around your work.
It is especially useful when you are searching among many connections or need to show someone else the inspection location. The TD2e places the sound pattern on the camera image, giving you a visual reference as you move between fittings.
You can also save that view for the person carrying out the repair. The added value is a clearer location and a shareable record, particularly for repeated checks and customer-facing work.
Both packages use the same TD2e camera. Standard suits routine checks in one location. The Professional Kit adds a second battery, soft bag and hard case for longer visits and travel between jobs. Compare the package contents on the product page before choosing.
